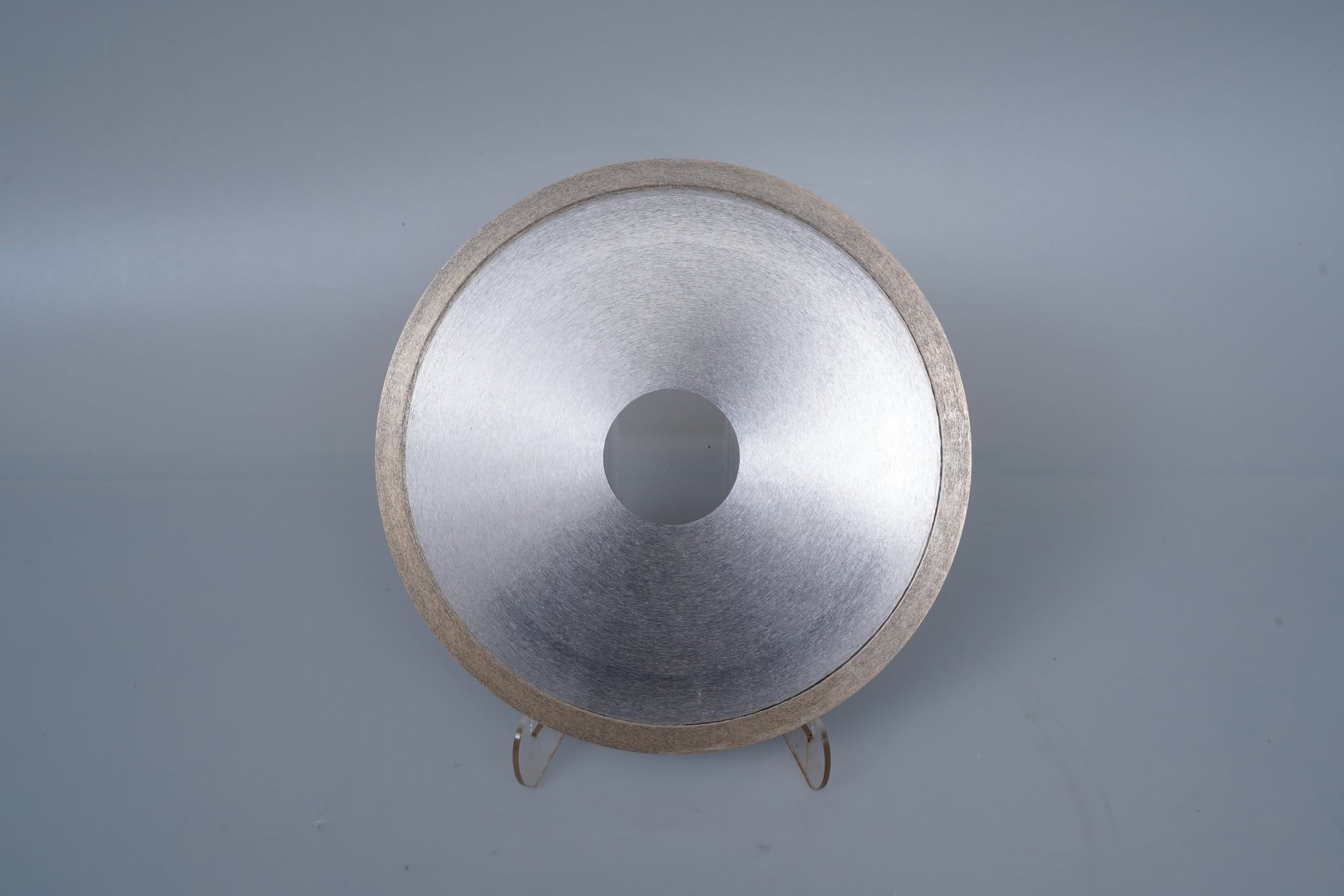

General Purpose Saw Blade
Multi-material blade for ceramic tile, stone, microcrystalline stone and ordinary concrete. The practical choice when you cut more than one material.
MOQ 1 PCS
Lead time 2–4 working days
Process: Hot-Pressing
热压
MOQ1 PCS
Lead time2–4 working days
ProcessHot-Pressing
FamilyGeneral Purpose
What this blade cuts
- Ceramic tiles
- Stone materials
- Microcrystalline stone
- Ordinary concrete
Machines it fits
- Hand-held cutting machine
- Table-type cutting machine
Sizes & specifications
| ('Diameter (mm)', 'seg-h', 'seg-t') | ||
|---|---|---|
| Φ105 4-1/8″ | 8 / 10 / 13 | 1.2 / 1.4 |
| Φ115 4-1/2″ | 8 / 10 / 13 | 1.8 |
| Φ125 5″ | 8 / 10 / 13 | 1.8 / 2.0 |
| Φ150 6″ | 8 / 10 / 13 | to confirm |
| Φ180 7″ | 8 / 10 / 13 | to confirm |
| Φ230 9″ | 8 / 10 / 13 | 1.8 / 2.0 |
Φ150 / Φ180 thickness to be confirmed — quoted case by case.
Request a quote — General Purpose Saw Blade
Send the size and quantity and we will quote against it. A photo of the machine nameplate or the blade you are replacing is the fastest way to confirm fit.
