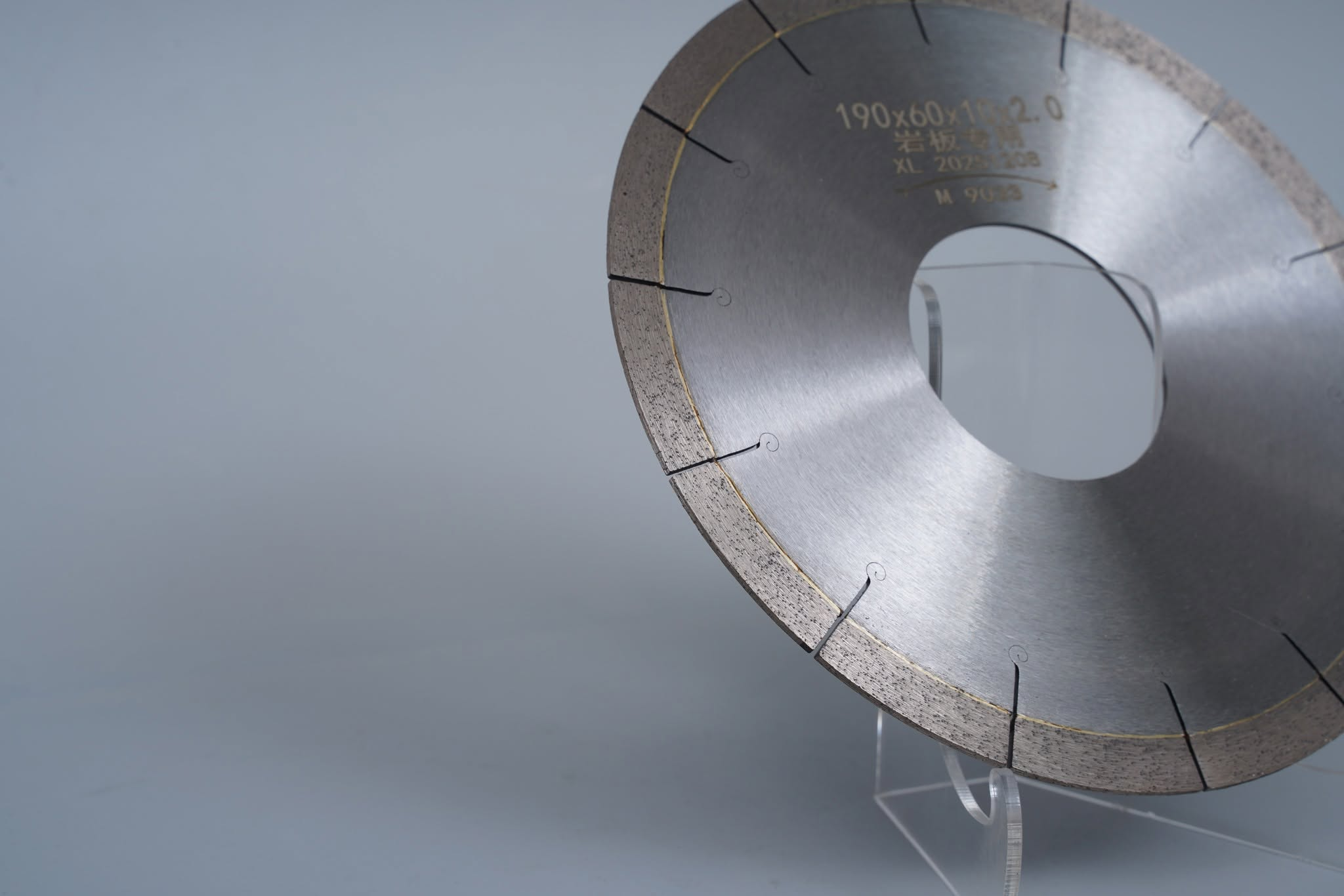

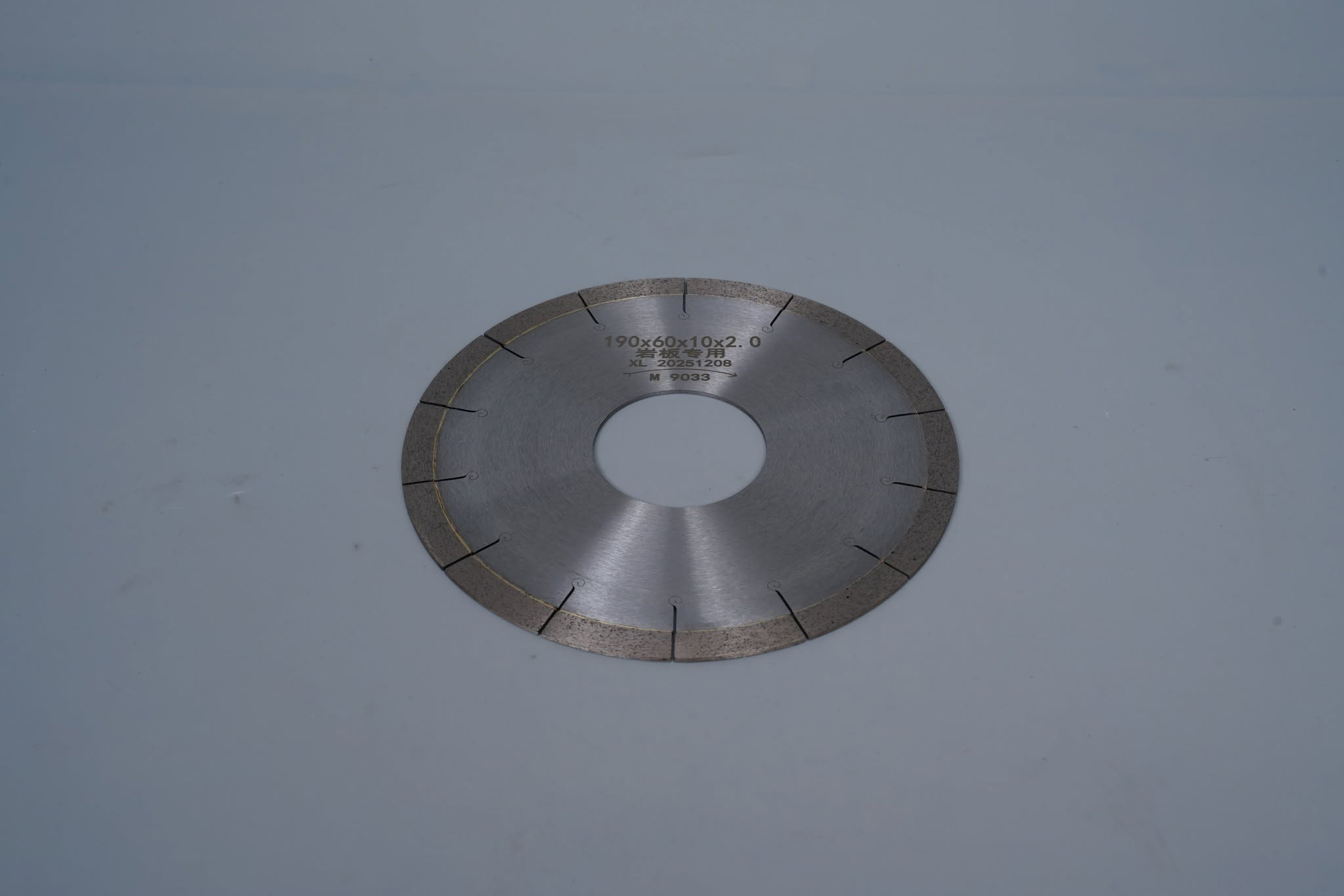

Sintered Stone Saw Blade (HF Welded)
Segment blade for full-body, ultra-thin and large-format sintered stone. Suited to straight cutting, 45° bevel cutting and grooving.
MOQ 1 PCS
Lead time 2–4 working days
Process: HF Welding
高频焊接
MOQ1 PCS
Lead time2–4 working days
ProcessHF Welding
FamilySintered Stone
What this blade cuts
- Full-body sintered stone
- Ultra-thin sintered stone
- Large-format sintered stone
- Slab fabrication
Machines it fits
- Sintered stone cutting machine
- Bridge cutter with bevel function
- CNC
Sizes & specifications
| ('Diameter (mm)', 'seg-h', 'seg-t') | ||
|---|---|---|
| Φ190 7-1/2″ | 10 | 1.6 / 1.8 / 2.0 / 2.2 |
| Φ210 8-1/4″ | 10 | 1.6 / 1.8 / 2.0 / 2.2 |
| Φ250 10″ | 10 | 1.8 / 2.0 / 2.2 |
| Φ300 12″ | 10 | 1.8 / 2.0 / 2.2 / 2.8 |
| Φ350 14″ | 10 | to confirm |
| Φ400 16″ | 10 | 2.8 / 3.0 |
Φ350 segment thickness to be confirmed — quoted case by case.
Request a quote — Sintered Stone Saw Blade (HF Welded)
Send the size and quantity and we will quote against it. A photo of the machine nameplate or the blade you are replacing is the fastest way to confirm fit.
